Playing sound


Martin McBride, 2016-12-09
Tags digital to analogue converter quantisation
Categories data representation sound

When you play a sound file from your computer or other device, through speakers or headphones, it goes through the following stages. These are more or less the opposite the stages in recording a sound:

sound-playing

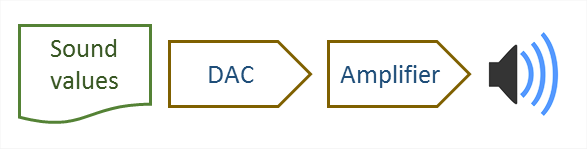

The player software reads the sound data from file, and sends the data to the hardware, which converts it to an electrical signal, which in turn drives the speaker.

Sound player software

The sound player software reads the sound data from a sound file in a standard format such as WAV or MP3. It uncompresses the data, if necessary, and passes it to the sound hardware.

Sound hardware

The sound hardware consists of a digital to analogue converter (DAC) and an amplifier

sound-recording

Most devices have built in sound hardware, although with a PC you can use a separate sound card to obtain higher quality.

If you use USB headphones, the conversion hardware is built in to the headphones. The sound is is sent over the USB connection in digital form, and converted to an electrical signal by the headphones. Your computer sound hardware will be bypassed in that case.

Digital to Analogue Converter

The sound file stores the waveform as a list of numbers which represent the sound level.

sound-recording

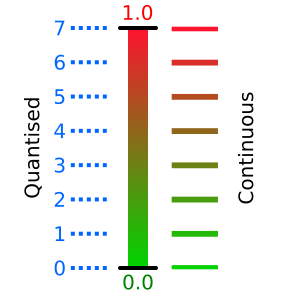

As an example, our sound file might use the number 0 to 7 to represent a signal level of 0.0 to 1.0. The DAC takes the numbers and converts them back into an electrical signal:

sound-recording

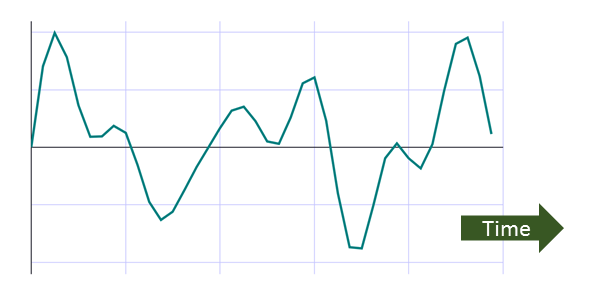

Although the electrical signal is continuous (it can take any value within the range), the output of the DAC can only take values which match the quantised levels of the input data. However, the sound system filters the output to produce a smoother curve (in green).

sound-recording

Amplifier

The output of the DAC must be amplified to provide enough power to create a sound. Most devices such as phones or laptops only supply enough power to drive a set of headphones. If you want to use loudspeakers, you will need an additional amplifier. For example, the speakers you might use with a PC often have their own built-in amplifier.

sound-recording

The output signal will not be exactly the same as the input signal because it has been sampled and quantised, both of which distort the signal. But the distortion shown here is deliberately exaggerated to illustrate the effect. The signal is typically sampled tens of thousands of times per second, and quantised to tens of thousands of levels, creating very good quality sound.
